Solving Lighting Design Challenges: The Ultimate Guide To Managing Multiple Led Lights With One Switch

f0c90d6e 859f 4a3a 938e 50e9f9702634 687f8880 1647 44ef b2da 643596f8e2c8

Light up your space! How can multiple LED lights be connected to a single switch to make your lighting design easy and fun? Don’t worry, as a professional lighting designer, I’ll reveal best practices and thoughtful advice to you. Follow me and discover how to create stunning lighting effects!

LED lighting plays an important role in today’s world and the challenge of managing multiple LED lights is becoming more and more common. Many people wonder if it is possible to control multiple lights with a single switch. The good news is that the answer is yes!

In this article, I’ll take you through the basics of wiring a light switch and provide a step-by-step guide to easily connecting multiple LED lights to a single switch. Let’s dive in!

Basics of wiring a light switch

Before we can start connecting multiple LED lights, we first need to understand the basics of wiring a light switch. First and foremost are power and voltage, which are essential elements in lighting design.

Ensuring that the appropriate power supply and switch are selected is essential for the proper functioning of the luminaire.

At the same time, wiring and connection considerations need to be taken fully into account. Proper wiring and connections can provide a reliable power supply and ensure the safe operation of the luminaire.

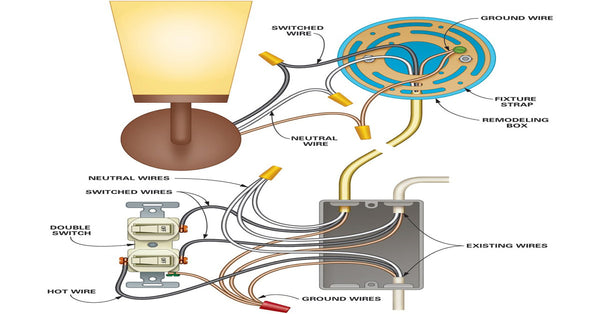

What you need

f08b9e84 a404 4828 81fd 492cc65235d7 aa8ad6a4 0614 4361 9ae6 6d60f96b7b69 600x600

Before you start connecting multiple LED lights, let’s get the materials and tools you need ready.

Firstly, you will need to select the right LED luminaire for your needs. There are many different types of luminaire to choose from, including LED luminaires that can be customised, luminaires suitable for track lighting and LED luminaires for commercial premises. Make sure you choose the right luminaire for your lighting design.

In addition to LED luminaires, you will also need to purchase the right switches and accessories. The type and characteristics of the switch should match your lighting design.

In addition, you will need to purchase suitable wires and connectors to ensure reliable power transmission and connection.

When connecting LED lights in parallel, you also need to consider using a current limiter.

A current limiter ensures that each LED lamp receives the right amount of current and protects the LED lamps from the risk of current overload. Choose the right current limiter for your needs so that your LED lamps can operate stably for a long time.

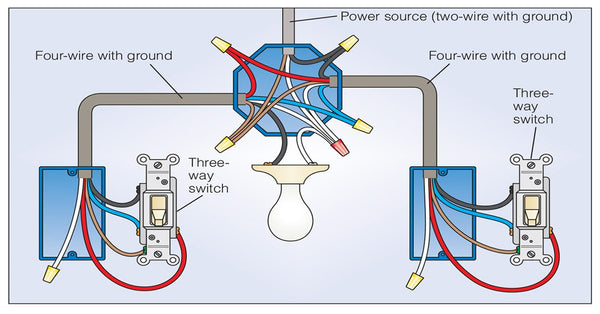

Step-by-step process: How to connect multiple LED lights to a single switch

7efe3f32 16f5 4930 8c8e 1c2b79326fc1 600x600

Now let’s take a step-by-step process to connect multiple LED lights to a single switch! Please follow these steps:

  1. Plan and design the circuit connections:

Before you start, define your lighting design needs and create a circuit connection plan based on the layout and requirements of the space. This will help you to ensure that you connect and arrange the LED lights correctly and achieve the desired lighting effect.

  1. Prepare the required materials and tools:

Prepare the required LED luminaires, switches, fittings, wires and connectors according to your plan. Ensure that all materials and tools are available for smooth subsequent steps.

  1. Connecting the LED light to the power supply and switch:

First, connect the LED lamp to the power supply and switch. Depending on the connection method you have chosen (series or parallel), connect the LED light to the power supply and switch using the correct wires and connectors. Make sure that each connection is secure and reliable to avoid loose wires or poor contact.

  1. Test and adjust connections:

Once the connections have been made, test to ensure that each LED light is working properly. Switch on the switch and observe that the LEDs light up and achieve the desired brightness and effect. If necessary, make adjustments as necessary to obtain the best possible lighting effect.

What is the correct way to connect LED lights in parallel circuits?

Parallel connection is a common way to connect multiple LED lights and it offers some unique advantages. When connecting LED lamps in parallel circuits, be sure to follow the following correct methods:

  1. Select the appropriate current limiter:

When connecting LED lamps in parallel, each LED lamp should be equipped with an appropriate current limiter. A current limiter ensures that each LED lamp receives the right amount of current, thus extending its life and avoiding the risk of current overload.

  1. Balanced current distribution:

In a parallel connection, the current is distributed to each LED lamp. Ensuring that the current is evenly distributed between each LED lamp is key. Balanced current distribution can be achieved by adjusting the current limiter or by selecting an appropriate current limiter.

  1. Ensure that the connections are secure and reliable:

Each connection point in a parallel connection should be secure and reliable to avoid loose wires or poor contact. Use good quality wires and connectors with appropriate fixing to ensure a stable connection.

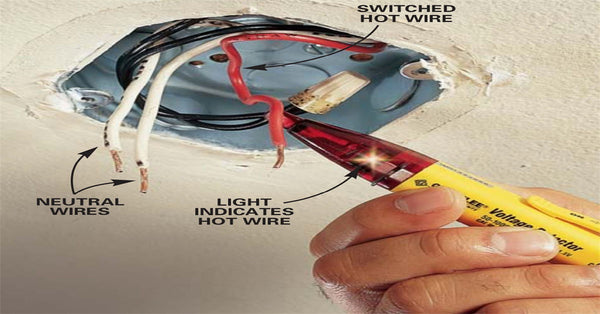

How many LEDs can be connected to one switch?

5b87a195 63d6 4705 8f98 0cf2f23e629c 59308812 c570 4cf7 b462 921c28265838 600x600

The number of LED lights that can be connected to one switch depends on the power rating and load capacity of the switch, as well as the power requirements of each LED light.

When selecting a switch, check its power rating and load capacity to ensure that it can meet the total power requirements of your LED lights.

If the total power of the LED lights exceeds the power rating of the switch, you may need to use multiple switches to control different groups of LED lights separately.


  1. How can I solve the problem of uneven brightness of the lamp?

If the brightness of the LED lamps is uneven, you can try the following solutions:

  • Check and ensure that the power supply and current limiter are set correctly for each LED lamp.
  • Adjust the position and angle of the LED lamps to distribute the light evenly.
  • Use a dimmer or light control system to precisely control the brightness of the LED lights.
  1. How do I deal with the layout of wires when connecting a large number of LED lights?

When connecting a large number of LED lights, the wire layout can become a challenge. The following are some suggestions:

  • Use hidden wire slots or conduits to lay out the wires in a neat and orderly manner.
  • Use rail systems or rails to mount and connect LED lights to simplify the wire layout.
  • Use a modular design with connectors and fittings to reduce the complexity of the wires.
  1. How do you deal with the risk of current overload and short circuits?

To prevent current overloads and short circuits, the following precautions can be taken:

  • Use appropriate current limiters to ensure that the LEDs receive the right amount of current.
  • Check the condition of the wires and connectors regularly to ensure that they are not worn or damaged.
  • Follow the correct installation and connection methods and comply with the relevant safety standards.

Your lighting design journey is about to begin! Connecting multiple LED lights to a single switch will bring new energy and charm to your space. Whether in commercial premises, lighting in retail stores or other environments, customised LED luminaires and sensible wiring will give you the perfect lighting effect.

As a professional lighting designer, I hope that this article has provided you with valuable knowledge and practical advice to help you solve the problem of connecting multiple LED lights to a single switch. But it’s not enough to know and master this knowledge, action is the key!

Now is the time to take action and turn these brilliant lighting design ideas into reality. Choose the right led light fixtures for your needs, buy quality wires and connectors, prepare the right switches and accessories and follow the step-by-step connections we provide.

Make your space shine! Whether it’s a commercial lighting solution to add a business atmosphere or to create an attractive display for a retail shop, multiple LED lights connected to a single switch will open up endless possibilities. With the right wiring and carefully selected LED luminaires, you will create a unique lighting design that will bring new life and appeal to your space.

Now, let’s start the exciting journey of lighting design together! Take action, light up your space and create stunning lighting effects!
