LED strip lights are a common lighting device consisting of many small LED lights. They are widely used for interior and exterior decoration and lighting, and can create stunning visual effects in a variety of scenarios.
In this article, I will describe how to connect multiple LED strips and the safe wiring codes that need to be followed when making the connections.
If you have a need for this, please read on.

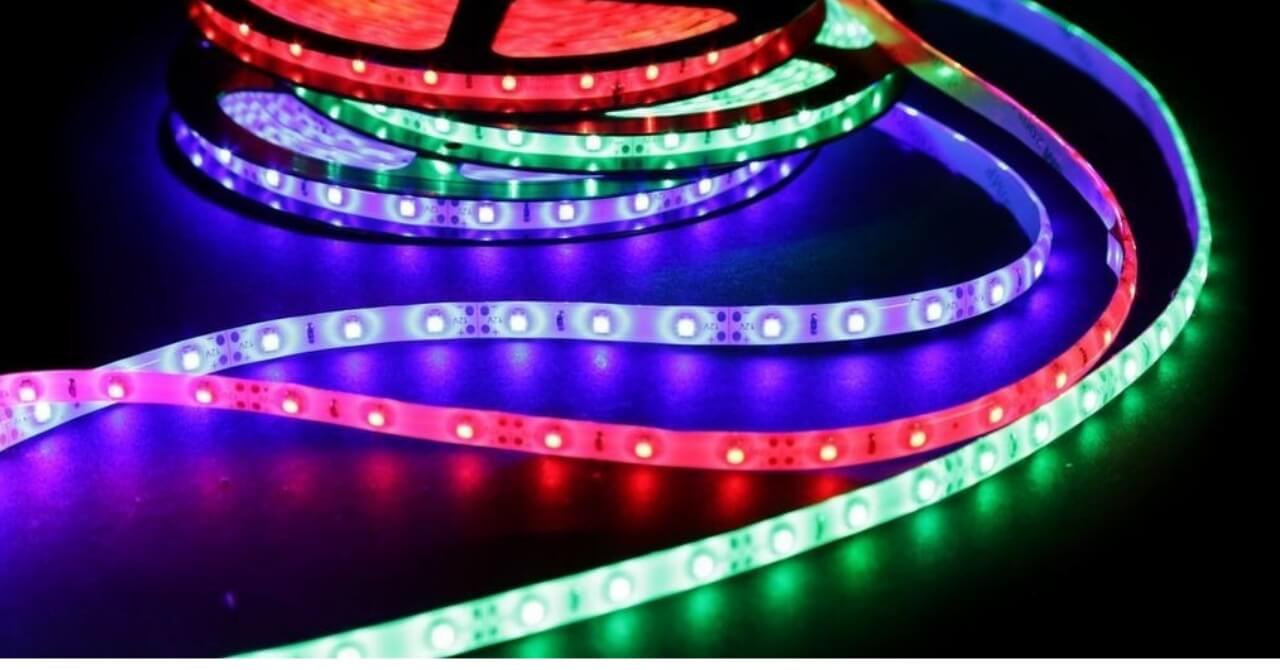

1. LED strip lights
1.1 Overview of LED strips

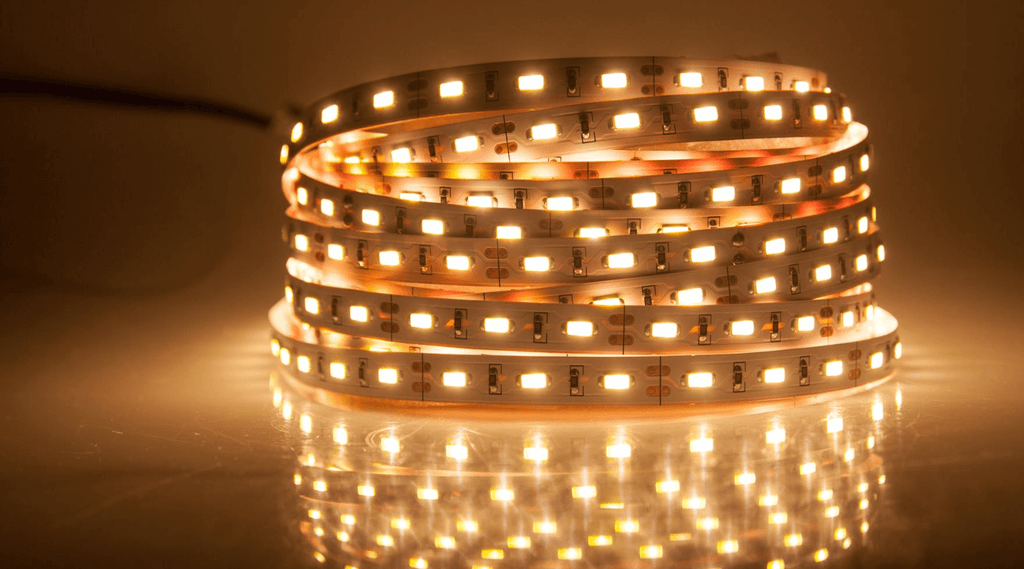

LED strips are composed of multiple small led lights strips with the advantages of high brightness, low power consumption, long life and environmental protection. They typically consist of a pair of shearable electrodes and a plastic housing that allows them to be easily cut and mounted on a variety of surfaces.
1.2 Explanation of LED strip light types
According to different uses and application scenarios, LED strips can be divided into monochrome, colorful, RGB, digital and smart strip types.
Single-color strip can only emit light of one color, multi-color strip can switch between different colors, and RGB strip can emit light of red, green and blue colors.
Digital strips can control the brightness and color of individual LED lights, while smart strips can be connected to smart devices via Wi-Fi or Bluetooth to achieve remote control and automation functions.
1.3 Compatibility of different types of LED strips
Before connecting multiple LED strips, their compatibility must be considered. Different types of LED strips have different power and controller requirements, so before connecting them, you need to carefully check the specification sheet provided by the manufacturer to make sure they can work together.
2. How to connect multiple LED strips to the same power source?
2.1 Calculate power requirements
Before connecting multiple LED strips, the required power must be calculated. The power of each LED strip is different, so you need to calculate the sum of their power to determine the required power supply capacity.
2.2 Power Supply Selection
After determining the required power, an appropriate power supply can be selected. The power supply must be able to provide enough current and voltage to meet the needs of all LED strips.
In addition, the power supply must have over-current and over-voltage protection to ensure the safety of the connection.
2.3 Wiring Methods for Connecting Multiple LED Strips to a Single Power Supply
Connecting multiple LED strips to a single power supply requires following the correct wiring methods.
First, the correct type and size of wire needs to be used. Before connecting to the power supply, all LED strips must be connected together, using wires to connect them in series.
In this step, you need to make sure that the positive and negative terminals of each LED strip are properly connected.
Next, connect the power supply to the positive and negative terminals of the LED strips and secure all the wire harnesses in the proper position to avoid movement or looseness.
3. Frequently Asked Questions
When connecting multiple LED strips, some common problems may occur. The following are a few common problems and solutions:
3.1. How to connect 10 LEDs into a string?
3.1.1 LED circuit
LED lights can form a circuit, and the circuit includes two kinds of circuits: series circuit and parallel circuit. Series circuit means the LEDs in the LED strip are connected along a path, while parallel circuit means the LEDs are connected along multiple paths.
3.1.2 Connecting LEDs into strings
Connecting 10 LEDs into a string requires connecting all LEDs along a path, connecting them together and making sure that the positive and negative terminals of each LED are properly connected. To ensure the proper operation of the LED strip, a suitable resistor also needs to be added to the circuit.
3.1.3 Calculate the resistance value of the LED circuit
Before determining the required resistance value, the voltage and current of the circuit needs to be calculated. According to Ohm’s law, the resistance value of a resistor is equal to the voltage of the circuit divided by the current. Therefore, this formula can be used to calculate the required resistance value.
3.2. Do I need a resistor for each LED lamp?
3.2.1 The Role of Resistors in LED Circuits Explained
The role of a resistor in an LED circuit is to limit the flow of current and thus protect the LED lamp from over-current damage. Since LED lamps have a very low resistance, it is important to use a suitable resistor to control the flow of current when connecting them.
3.2.2 Factors for Determining the Need for Resistors in LED Circuits
Determining whether a resistor is required in an LED circuit requires consideration of a variety of factors, including the power, voltage, and current requirements of the LED lamp. If the voltage and current of the circuit are low enough, then a resistor is not required. Otherwise, a suitable resistor must be used to limit the flow of current.
3.2.3 Using Resistors in LED Circuits
Using a resistor in an LED circuit requires connecting the resistor between the positive and negative terminals of the LED lamp. The wiring must ensure that the power rating of the resistor is greater than the total power of the circuit and that the resistance value of the resistor should be calculated based on the voltage and current of the circuit.
3.3. How many LEDs can be wired together?
3.3.1 Calculating Power Requirements
Before deciding on the number of LEDs that can be wired together, it is necessary to calculate the power requirements for the entire circuit.
This can be done by adding up the power of each LED to arrive at the total power requirement for the entire circuit.
3.3.2 Voltage Drop
Voltage drop is the resistance that the current will encounter as it passes through a wire or connector, which causes a drop in voltage.
As the length of the LED strip increases, the voltage drop also increases, so the effect of voltage drop must be taken into account when calculating the power requirement.
3.3.3 Maximum number of LEDs that can be wired
The maximum number of LEDs that can be wired depends on the capacity of the power supply and the voltage drop. If the capacity of the power supply is large enough and the voltage drop is small, then more LEDs can be wired.
Otherwise, it is necessary to add a power supply or connect multiple LED strips in sections to ensure proper operation.
3.4. Is the LED string light AC or DC?
3.4.1 Explanation of the difference between current and direct current
AC and DC are the two common types of electricity transmission. Streaming electricity means that the direction of the current is constantly changing, while direct current means that the current flows in one direction and does not change direction.
3.4.2 Identifying AC and DC LED String Lights
Most LED string lights are DC LED strips, but some LED string lights may be AC LED strips.
The type of LED string light can be determined by looking at the label or specification sheet on the strip.
3.4.3 Wiring Methods for AC and DC LED String Lights
The wiring methods for AC and DC LED string lights are slightly different. AC LED string lights need to be connected to an AC power source, while DC LED strips need to be connected to a DC power source. When wiring, care must be taken to connect the positive and negative terminals correctly to avoid damage to the strip.
3.5. Can I connect the LED light directly to the battery?
LED lights can be connected directly to the battery, but care must be taken with the voltage and capacity of the battery.
If the voltage of the battery is too high, it may damage the LED light, so you need to use a suitable resistor to limit the flow of current.
Also, you need to make sure that the battery capacity is large enough to support the power requirements of the connected LED lights.
4. Safe wiring specifications need to be followed when connecting LED strips
When connecting LED strips, safe wiring codes must be followed to ensure safe and reliable operation. The following are a few safe wiring codes:
Use the correct type and size of wire and connectors.
Disconnect power before wiring to avoid electric shock or short circuit.
Secure wires and connectors in the proper location to avoid movement or looseness.
Make sure all wires and connectors are well protected by insulation to avoid electric shock or short circuit.
Make sure the power supply capacity is large enough to meet the power demand of all LED strips.
Make sure all LED strips are properly connected with positive and negative terminals and add the necessary resistors.
After wiring, check all wires and connectors for tightness to ensure they do not come loose.
